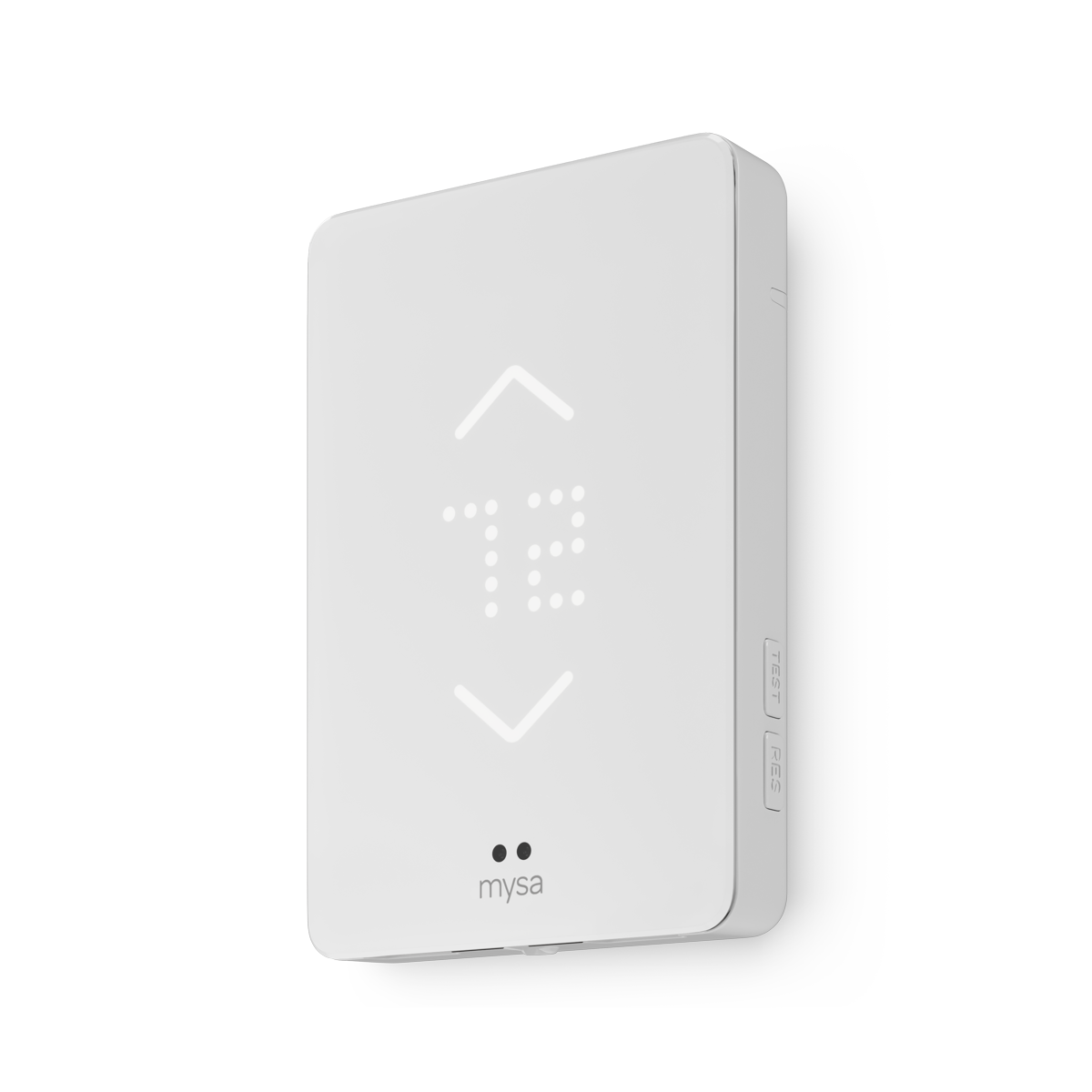

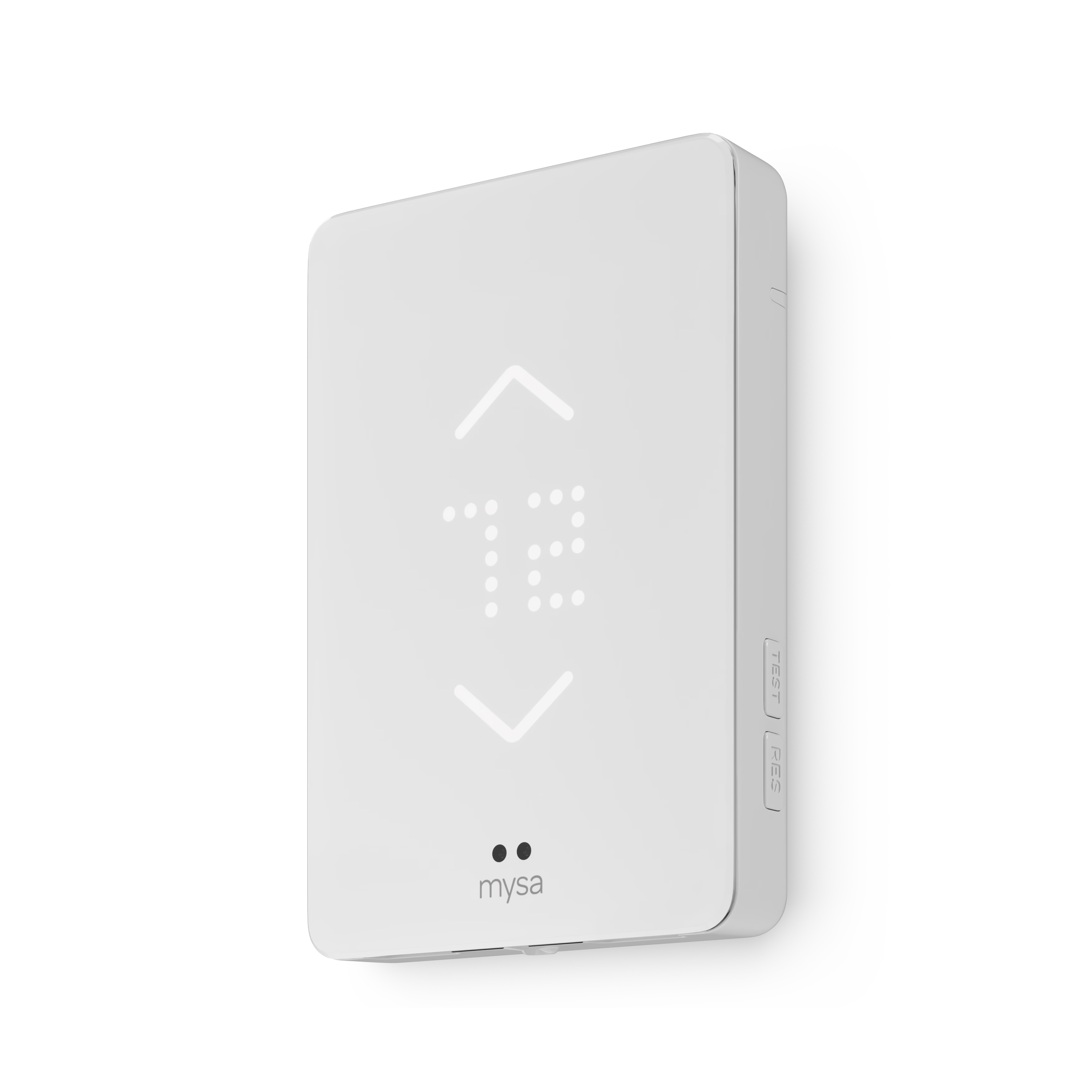

Mysa for Electric In-floor Heating

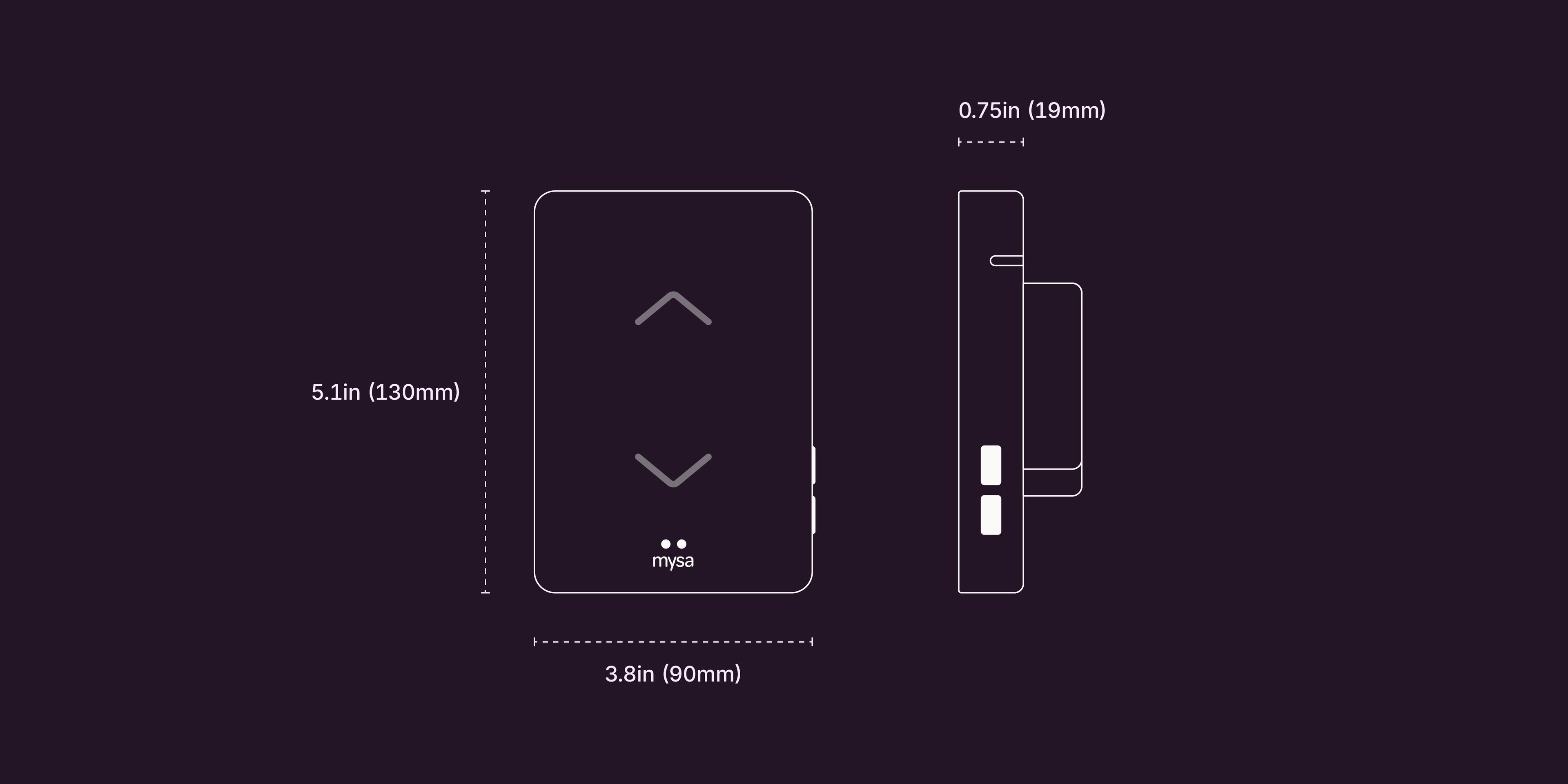

Dimensions

• Height: 5.1 in (129 mm)
• Width: 3.5 in (88 mm)
• Depth: 0.8 in (20 mm)

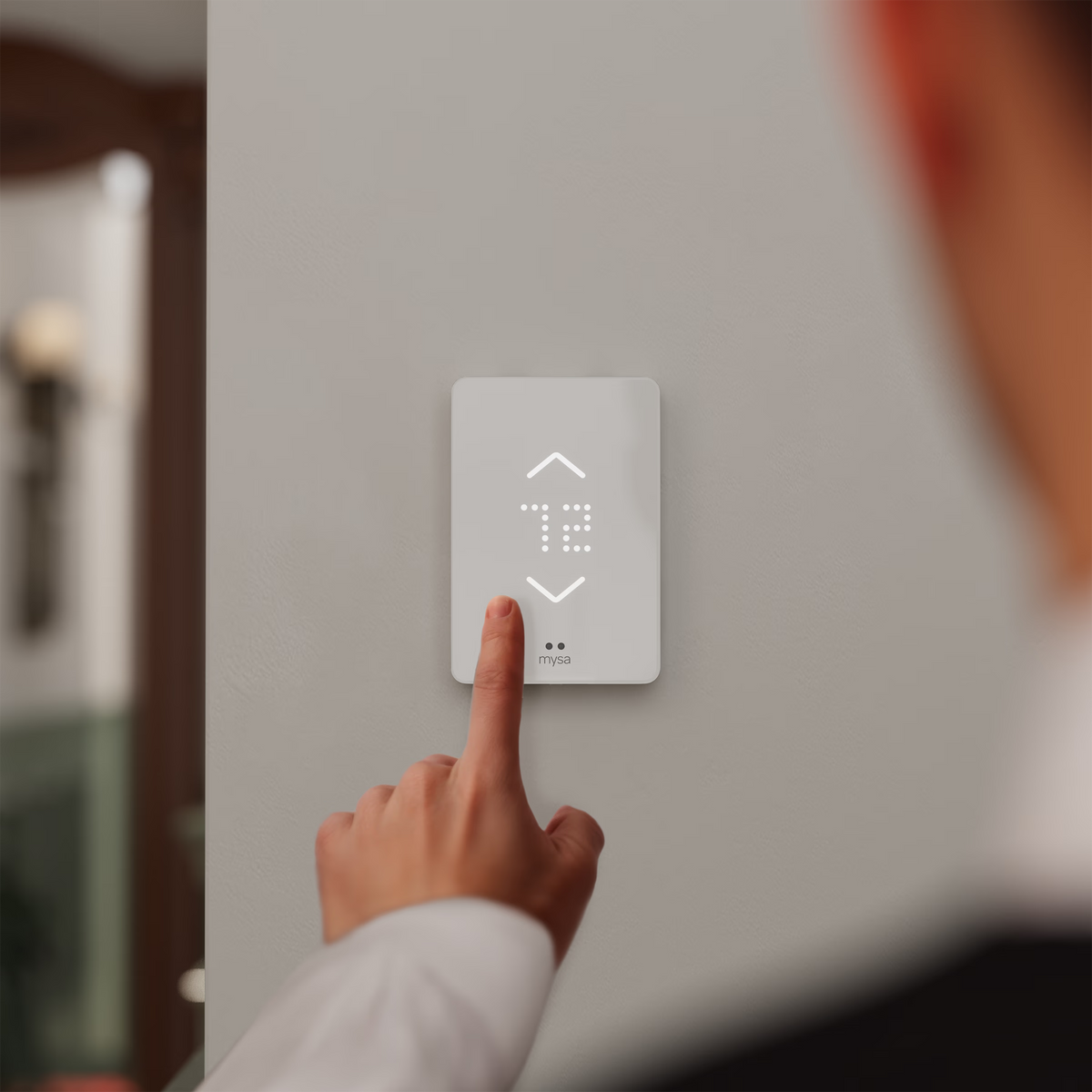

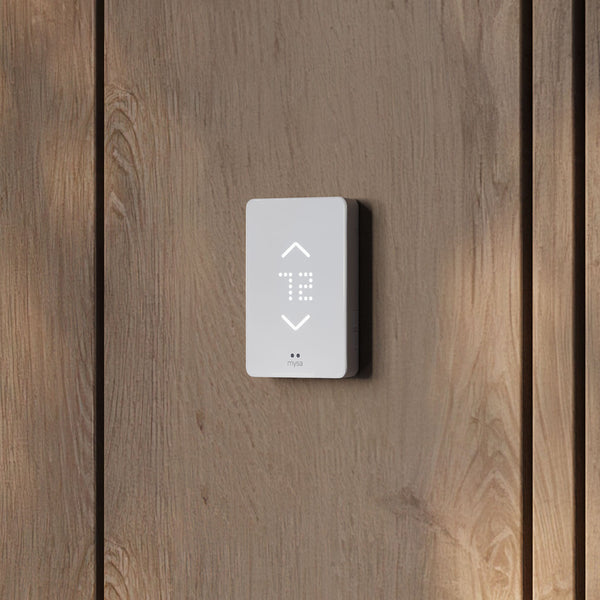

Display

• LED display with touch buttons
• Up/down temperature controls

Sensors & Control

• Temperature accuracy: ±0.5 °F (±0.3 °C)
• Humidity accuracy: ±2% RH
• Floor sensor input: supports 5–40 kΩ thermistors

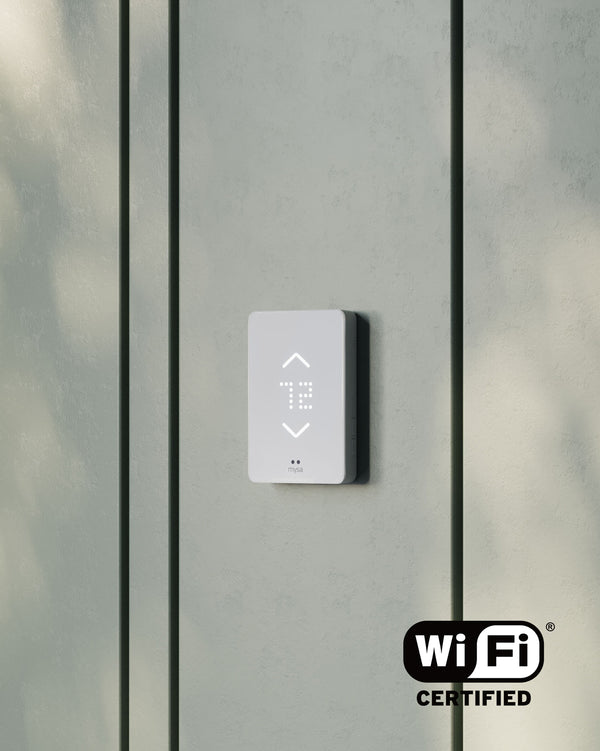

Wireless Connectivity

• Wi-Fi 2.4 GHz (802.11 b/g/n)
• Bluetooth Low Energy (BLE)

Power & Compatibility

• Compatible with most high-voltage electric in-floor heating systems and flooring types
• Includes 10 kΩ floor sensor (16 ft / 5 m cable)
• Works with existing floor sensors from 5–40 kΩ

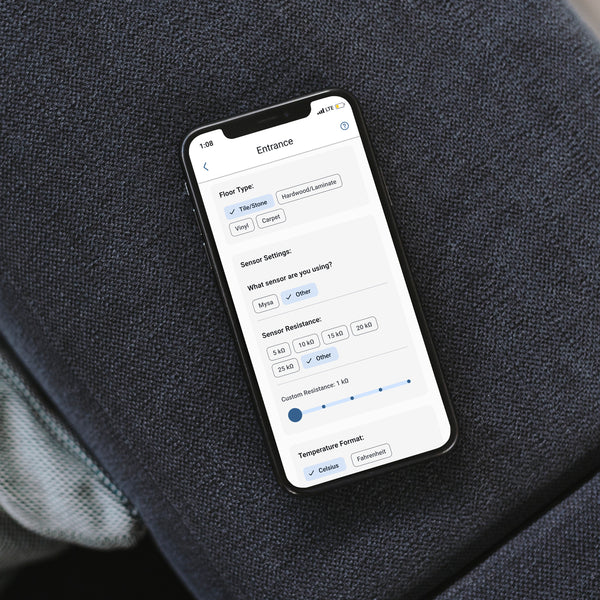

• Floor type selection with maximum floor temperature limit
• Max load: 16 A (1,900 W @ 120 VAC; 3,800 W @ 240 VAC)
• Fits standard single-gang box
• Must replace a Class A GFCI thermostat (5 mA)

Certifications

• UL 60730
• CAN/CSA-E60730

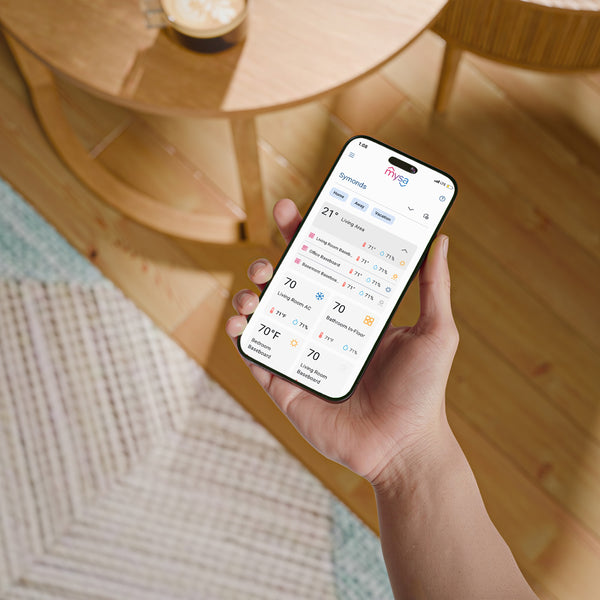

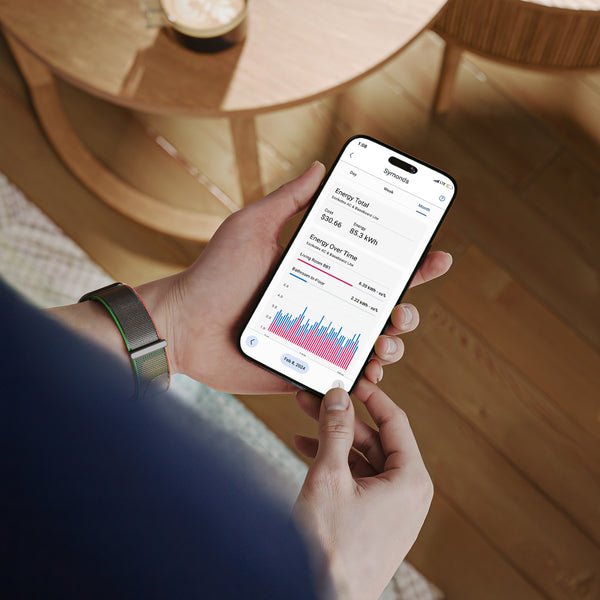

Mobile App

• Requires the Mysa app and a free Mysa app Account
• Available on the Apple App Store and Google Play

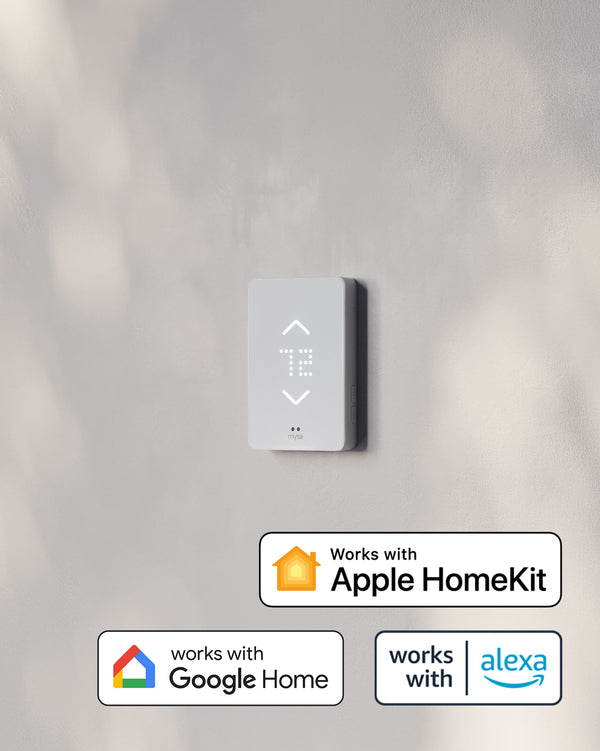

Integrations

• Apple HomeKit
• Google Home
• Amazon Alexa

Security

• Secure boot with signed firmware.
• Automatic, signed OTA updates
• Data encrypted in transit with TLS 1.2+
• SOC 2 Type 1
• CSA Product Security Level 1 Verified

Languages

• English
• French

Support

• Bilingual support agents
• North America–based team
• 7 days a week
• Phone, email, and chat

Warranty

• 5-year limited warranty
